1. |

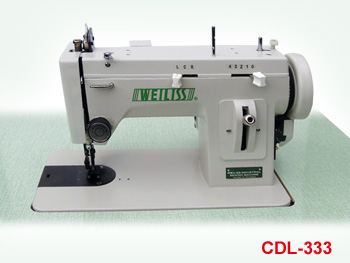

This
semi-industrial sewing machine
with functions of single needle,
lockstitch and zigzag. It is
equipped with a high lifting,
independent upper and lower feed
mechanism. |
|
2. |
It is composed of
upper and lower feed dogs which
are synchronized to feed the
material either forward or
reverse. |
|
 |
|
This machine is
suitable for stitching medium,
heavy, and extra heavy cloth,
canvas, upholstery materials and
light leather. |
|
 |
|
¡@ |
| ¡@ |
 |
¡@ |
| ¡@ |
|
Model |
CDL-333 |
|
Materials |
Medium & Heavy |
|
Max. speed |
900 r.p.m. |
|
Max. stitch length |
4 mm |
|
Presser foot height |
13 mm |
|
Needle 135x17 |
#18¡ã#23 |
|
Needle distance |
0¡ã4.0 mm |
|
Clutch motor |
150 W |
|
Power |
110V / 60Hz or 220V / 50Hz |
|
¡@ |
| ¡@ |
¡@ |
¡@ |
|
