1.

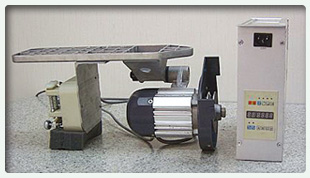

Adopt high performance direct driving servo motor, precision up to ±2°. It can save electricity over 40% than general motor.

2.

With electricity overload protection device and multi-setting of parameter safe and convenient.

3.

Needle gauge latch up device makes sure that the gauge distance is unchangeable when sewing, thus stitch quality is further ensured.

4.

Putting the thread winding device on the top of the machine head keeps bottom line winding when the machines is running, which makes the operations easy, increases productivity and ensures the quality of thread winding.

5.

Reliable thread cutting driving device ensures the improvement of productivity: With high speed lockstitch machine thread cutting device for medium and heavy material, with circular cutter for difficult cutting material.

6.

Forced oil pump circulating supply system prolongs the machine life and keep high speed sewing.

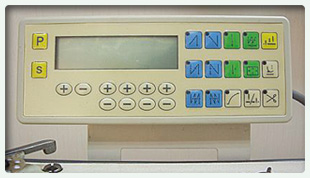

Key

Function

Start B side reverse sewing

Start A,B sides reverse sewing

Start A,B sides reverse sewing twice

End C side reverse sewing

End C, D sides reverse sewing

End C,D sides reverse sewing twice

Key

Function

Normal sewing mode

1 side sewing (500 stitches)

Softly sewing at start

Duplicate sewing (A,B sides)

4 sides sewing

Half stitch sewing while press the key

Key

Function

Stop at lower needle position if light off
Stop at upper needle position if light on

Presser foot lift on/off mode

Thread trimmer on/off mode

Exit from parameter mode

Enter to parameter mode
