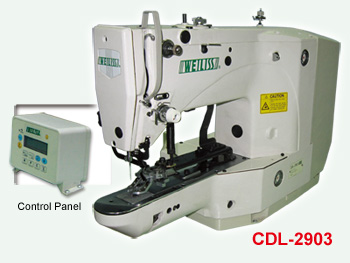

1. |
Max.
speed：2,700rpm. |
|
2. |
With
micro-lubrication system, then
the part of needle bar and
thread take-up do not need to
any lubrication. Solve the
leaking problem completely. |
|
3. |
Multi-functional
& simplify control panel for
easy and speedy operation. |
|
4. |
The machine can
sew several different stitches
in a cycle seam and can memory
hundreds of stitch patterns. |
|
5. |
The stitch can
follow user's demand to design
by themselves except the regular
stitches. |
|
 |
|
|
| |
|
 |
|
1. |
Selection of the sewing
pattern is the same as that of CDL-2900. |
|
2. |
When the distance between
holes of the button used does not fit the
sewing width of the sewing pattern no.,
adjust the sewing width by
enlarging/reducing the sewing width. The way
of enlarging/reducing is the same as that of
the CDL-2900. Refer to the table given below
for the scale for enlargement/reduction in
terms of the sewing width. |
|
3. |
After
changing the sewing pattern no. and the
sewing width, make sure of the needle entry
point. |
|
|
| |
|
 |
 |
|

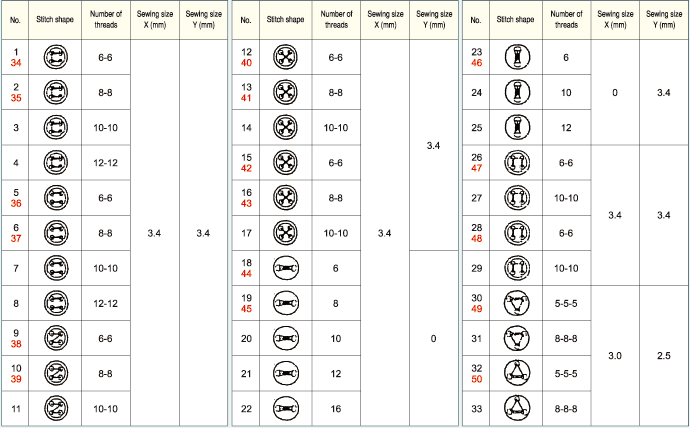

Remark : The
sewing sizes of X and Y are when the
enlargement/reduction rate is 100%, use the
stitch shape
No.34~No.50 when the button hole is small
(φ1.5mm or less). |
|
|
| |
 |
|
| |
|
X.Y.
(mm) |
2.4 |
2.6 |
2.8 |
3.0 |
3.2 |
3.4 |
3.6 |
4.0 |
4.3 |
4.5 |
4.7 |
5.2 |
5.6 |
6.0 |
6.2 |
6.4 |
|
% |
71 |
76 |
82 |
88 |
94 |
100 |
106 |
118 |
126 |
132 |
138 |
153 |
165 |
176 |
182 |
188 |
|
|
| |
 |
|
| |
|
|
|
|
|
